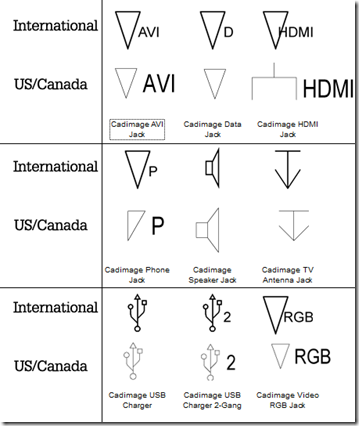

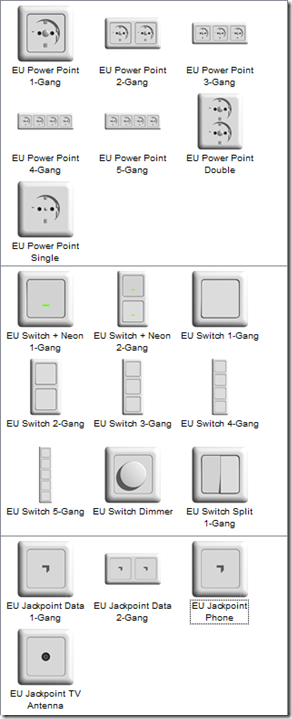

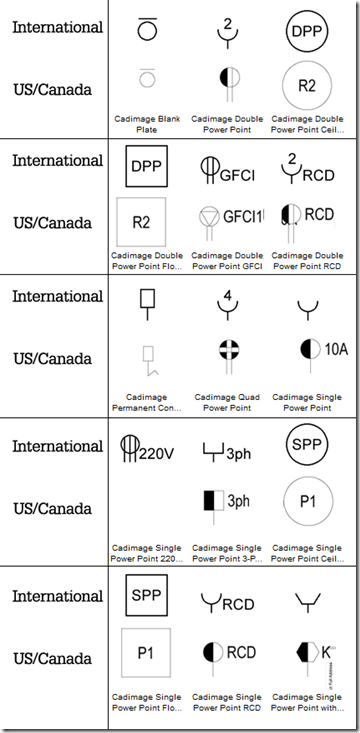

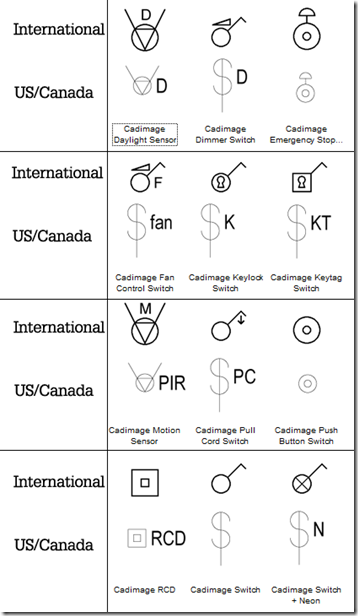

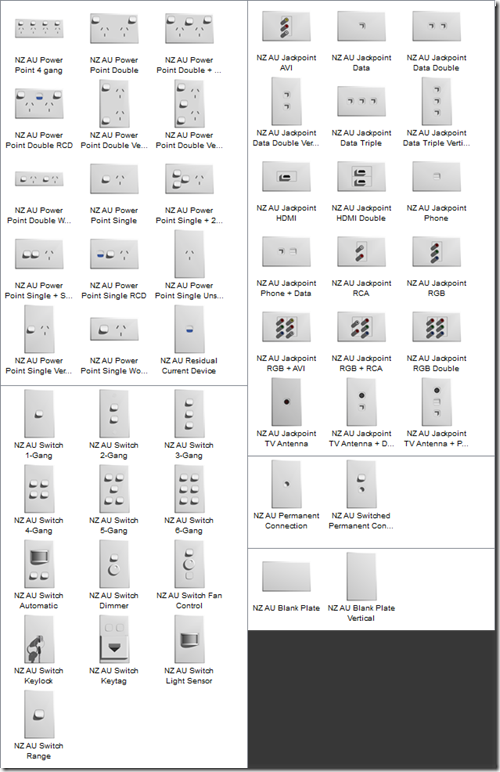

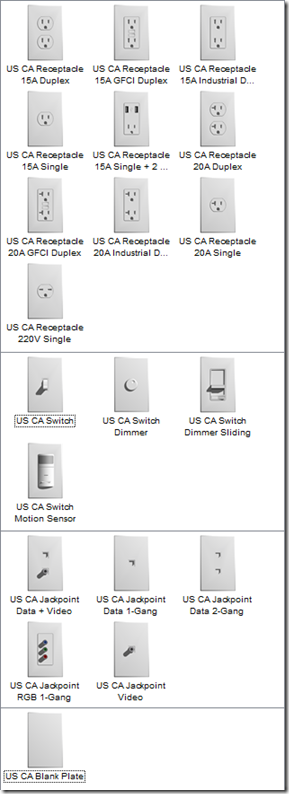

Included in the new Cadimage Electrical are a whole lot of Symbols and Wall plates for you to use – Symbols are available in International and US/Canada formats, and Wall Plates have a range for NZ/Australia, US/Canada, and the EU (Wall Plates are all separate objects, whereas the symbols are the same objects with an International or US preset).
Here’s what you get:
(it’s quite big, so you can also download this Gallery as a PDF if you’d prefer)
9 Comments
22nd November 2012
What about Africa??? and the UK? The available ones will do for now (I’m guessing the client won’t be zooming in to see if the plug/socket is right) but it would be prudent to develop the tool for the UK and for Africa, as I would suppose we are not going to get any further discounts for not having been catered for.
22nd November 2012
Hi, nice work.
However, in France the power point is different from the standard European one you show, it has a seperate opening just above the centre for earth (jack).
Cya, Oscar
22nd November 2012
Why no UK symbols or Wall plates?
23rd November 2012
If you can send us through the details on it, we can make it
23rd November 2012
We’re actually working on some UK Wall Plates right now…
23rd November 2012
We’re working on UK ones right now, but we don’t have any details on African electrical symbols or plates – if you can send us through some details, we’ll look at getting them made.
5th December 2012
These symbols are a great help, thanks!
10th May 2013
Hi guys, the electrical symbols and tools look great – how soon until the UK version is added?
Lee
10th May 2013
Hi Lee,
These have already been released and should have been included in the starter presets.
