Setting your roof Spring point

7 December 2012 Tate Gibbes No Comments
ArchiCAD, Tip of the Day

When setting up your roof, make sure that you put your spring /pivot point in the right place for the type of roof that you use. Especially if you have strict boundary requirements.

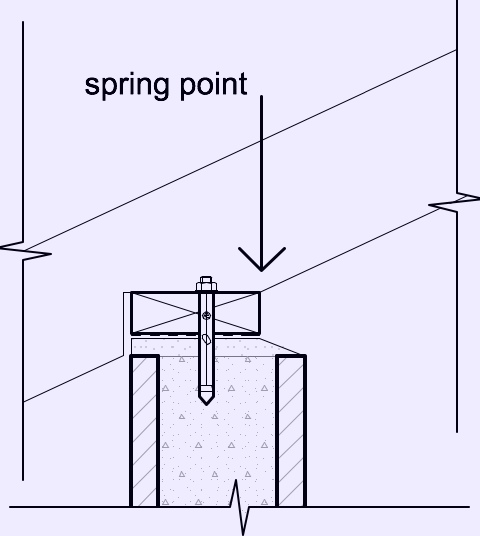

In the image below, we are using a trussed roof.  There for the roof needs to pivot / spring from the outside face of the wall



Yet in the next image, where we are using a raftered type of roof construction, we have to set the spring point  from where the rafter makes the first connection with the top plate of the wall frame



This may not seem that important, but in some cases it can be the difference between getting or not getting a permit
