How to offset components of a wall plate

7 January 2013 Jonathan Breen 1 Comment
ArchiCAD, ArchiCAD 16, Electrical, Tip of the Day

Sometimes there may not be enough room along a wall to fit all of the components:

So instead of stacking them side by side you can offset them from a  wall as well

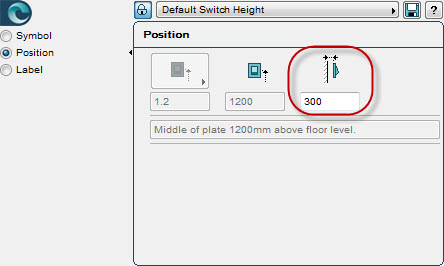

Simple select the components you want to offset and go to position settings

Set the distance you want to offset and you can now arrange them in a smaller area:
