If you have ever wanted to split an object it can be easily done with the Objective tool that is available along with the Cadimage range of tools

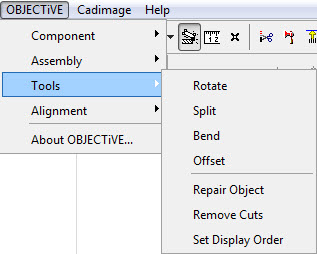

For example, take a standard ArchiCAD chair then go to OBjECTiVE>Tools>Split

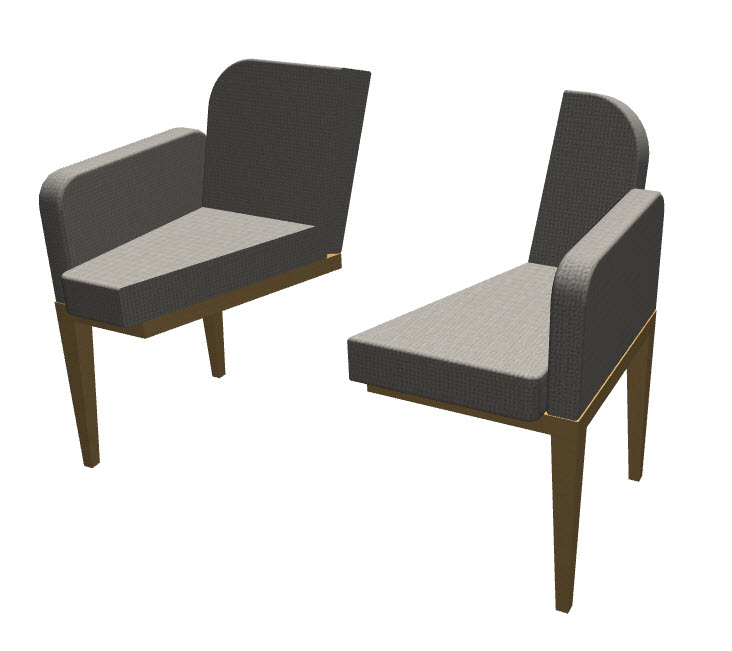

You can then modify the element however you like far beyond the limited settings with the object:
All of this is even undo-able as you can choose ‘Repair Object’ from the same menu
3 Comments
12th March 2013
Hi,
I had a look for this when the tip first came out and started to wonder if it was an early April fools joke. I couldn’t find the tool even in the Cadimage Archicad 16 template. Does this actually exist and if so where is it to be found?
Cheers, Eddie
15th March 2013
Hi Eddie
You can get Objective here: http://www.encina.co.uk/new_downloads.html
Jonny
22nd March 2013
Thanks, will keep it in mind to download sometime if I can think of a use for it.
