Zone boundaries with open plan spaces

28 February 2013 Jonathan Breen No Comments
ArchiCAD, Support, Tip of the Day

The best method to place zones is the Inner Edge method
This means the zone ‘connects’ with all its bounding elements

So if you update or move the walls, a simple Update Zones command will update all the zones according to the new boundaries

One issue you may encounter is open plan spaces where one space may have several different uses

For this use the Line Tool to define the boundaries between these spaces so the Inner Edge Method can still be used.

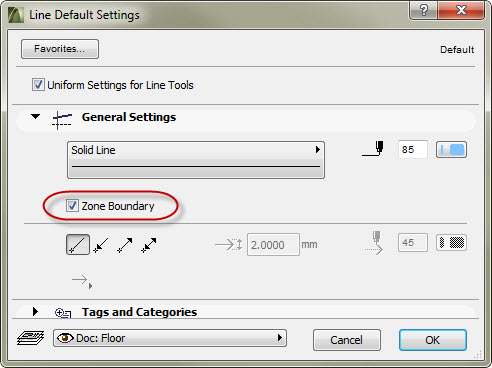

Just open the Line Settings and tick Zone Boundary

LineZoneBoundary
