Assign a number to windows in ArchiCAD 17.

27 August 2013 Soto 1 Comment
ArchiCAD 16, ArchiCAD 17, Cadimage, Tip of the Day, Tip of the Week

Sometimes you will want to have a specific order ID for your doors or windows.

We know you can change the ID individually, but if you use the Automatic ID numbering sometimes the numbers are not assigned in the order we would want.

There is a work around:



  1. Select all your Doors, change the ID to  ‘0’.
  2. Then select the doors in the order you want to assign.

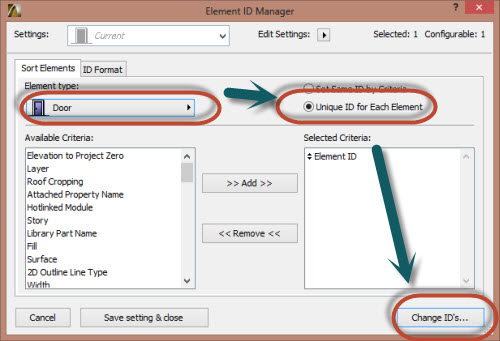

  3. Go to Document> Schedules and lists> Element ID manager.
  4. Select Doors as Element Type and Unique ID for Each Element.
  5. Click in Change ID’S

TIP 0F01



TIP-0F02
